RV AC Uneven Cooling: Do You Need More BTUs or Better Airflow?
Not all uneven RV cooling is a BTU problem. Learn how to tell whether your RV needs more capacity, better airflow, or both.
If one area of your RV feels comfortable while another stays hot, the air conditioner may not be too small. The problem may be how cooled air is being distributed.
More BTUs can help when the entire RV struggles to cool. But they will not correct blocked vents, leaking ducts, poor unit placement or weak room-to-room circulation. In those situations, a larger AC may make the area near it colder while a distant bedroom remains uncomfortable.
Before replacing the rooftop unit, determine whether your RV needs more cooling capacity, better air distribution or both.
BTU and Airflow Solve Different Problems
An RV air conditioner’s BTU rating indicates its cooling capacity: how much heat it can remove per hour.
Airflow, usually measured in cubic feet per minute, describes how much air the system moves. Rated CFM alone does not show whether that air reaches every part of the RV.
In simple terms:
- BTU determines how much heat the AC can remove.
- Airflow helps deliver the cooled air.
- The installation and floorplan determine where that air goes.
In a ducted system, ceiling ducts, vents and the return-air path affect distribution. In a non-ducted system, unit placement, louver direction, walls and closed doors play a larger role.
A high-capacity AC connected to restrictive or leaking ducts can still leave a bedroom hot. A non-ducted unit over the main living area may cool that space well but struggle to reach a closed rear room.
Is the Whole RV Hot or Just One Area?
A capacity limitation or excessive heat load usually affects most of the RV. Nearly every area remains above the thermostat setting after an extended cooling cycle, even though airflow feels reasonably strong.
An air-distribution problem creates a different pattern. The main cabin becomes cold while a bedroom, slide-out or distant room remains warm. In a ducted system, airflow may be strong at the nearest vent but weak at the farthest one. In a non-ducted system, walls, cabinets or closed doors may interrupt circulation.
Long run time alone does not prove that an AC is undersized, especially with variable-speed systems. More useful clues are whether the RV approaches the thermostat setting and whether the imbalance improves when a door is opened, a louver is redirected or a small fan is added.
Four Checks Before Buying a Larger RV AC
1. Check the Filter, Return and Outlets
A dirty filter or blocked return grille reduces airflow across the evaporator coil and may contribute to icing.
Clean or replace the filter as directed. Keep bedding, luggage and curtains away from return and supply openings.
For a ducted system, avoid closing several vents unless the manufacturer permits it. For a non-ducted unit, make sure the air outlets are open and aimed toward the warmer area.
2. Check the Temperature Split
Close the windows, doors and roof vents. Run the AC in cooling mode for at least 15–20 minutes with the compressor operating.
Using the same thermometer, measure the air entering the return grille and the air leaving the nearest supply outlet.
A return-to-supply temperature difference of approximately 15–20°F is commonly used as a general indicator, although the expected range varies by model, humidity, airflow and operating conditions.
For example:
82°F return air − 63°F supply air = 19°F temperature split
A reasonable split suggests that the system is cooling the air passing through it. It does not prove that the AC is large enough for the entire RV.
If the split remains below the manufacturer’s expected range after the filter and airflow have been checked, the next step may be service rather than a larger unit.
3. Check How Air Reaches the Warm Area
In a ducted system, compare airflow at the nearest and farthest vents. A distant vent may deliver cold air but move much less of it. A lightweight tissue can reveal an obvious difference, although it cannot measure CFM.
Weak airflow at one vent may indicate a restriction, compressed duct, loose connection or ceiling leakage. If the assembly has a direct-discharge or “quick-cool” vent, check its position in the owner’s manual. Leaving it open may keep more air near the rooftop unit instead of sending it through the ducts.
In a non-ducted system, inspect the open path between the ceiling assembly and the warm area. Walls, furniture and closed doors can prevent cooled air from circulating.
4. Test Room Circulation and Sensor Location
Open the bedroom door and use a small fan to move cooled air toward the warmer area. If the temperature difference improves, circulation is contributing to the problem.
This test is especially useful with non-ducted systems. In some ducted layouts, a closed bedroom door may also restrict the return-air path.
Thermostat location matters as well. A sensor near the AC or a strong supply outlet may reach the set temperature before a distant room becomes comfortable.
Persistent airflow problems or suspected duct leaks should be inspected by a qualified RV technician.
More BTUs or Better Airflow?
| What you notice | What to investigate first |
|---|---|
| Most of the RV remains warm | Heat load and total cooling capacity |
| Main cabin is cold but bedroom is hot | Distribution, circulation or ductwork |
| Airflow is weak at every outlet | Filter, return air, icing or blower |
| One distant ducted vent is much weaker | Local duct restriction or leakage |
| Non-ducted AC cools only the main room | Unit placement, louvers and circulation |
| Temperature split is normal but the whole RV stays warm | Heat gain and cooling capacity |
Before upgrading, reduce avoidable heat gain. Use shades and awnings, check seals, limit cooking during the hottest hours and begin cooling before the RV becomes heat-soaked.
When More Capacity Makes Sense
Additional cooling capacity may help when most areas remain warm despite balanced airflow, a manufacturer-appropriate temperature split and sensible heat-control measures.
RV length alone is not a reliable sizing method. Window area, insulation, sun exposure, climate, occupancy and separated rooms all affect cooling demand.
When choosing an RV air conditioner, consider capacity, indoor airflow, fan-speed control, duct compatibility, electrical requirements and unit placement.

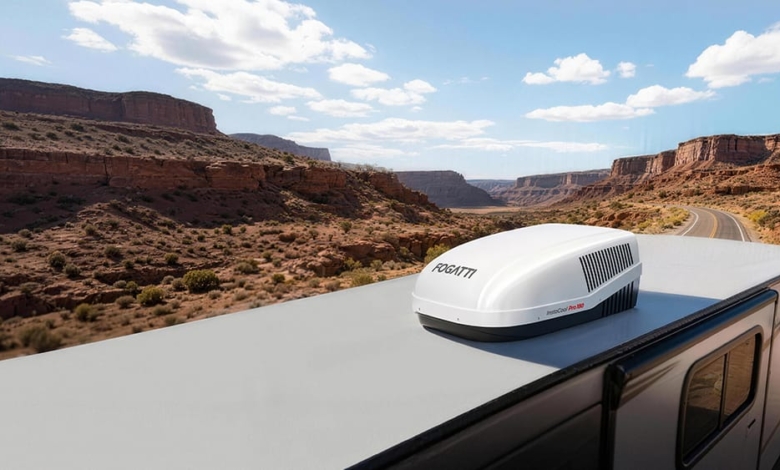

For medium-to-large RVs that need greater capacity and stronger air delivery, the FOGATTI InstaCool Pro 18,000 BTU RV rooftop air conditioner provides up to 374 CFM of indoor airflow and four fan speeds. It is available for ducted and non-ducted installations.
A higher-capacity unit still depends on sealed ducts or a clear non-ducted airflow path to reach the full living area.
Diagnose the Pattern Before Choosing the Solution
If the main cabin is cold while a distant bedroom stays hot, find out where the cooled air is going before buying a larger AC.
If most of the RV remains warm while the unit maintains a normal temperature split and reasonably even airflow, excessive heat load or insufficient capacity is more likely.
The best RV air conditioner is not simply the one with the highest BTU rating. It is the system that removes enough heat and delivers the cooling where people need it.
